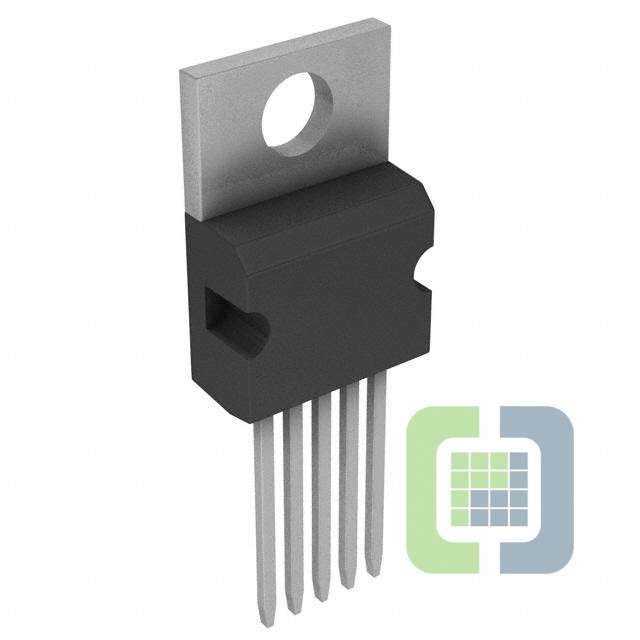

LM2991T
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR NEG ADJ 1A TO220-5
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 125
Can ship immediately
Pricing:
- 1$5.04
- 10$4.52751
- 45$4.28052
- 135$3.70983
- 540$3.15811
- 1,035$2.66345
- 2,520$2.53028
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Not For New Designs
- Output Configuration:Negative
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):-26V
- Voltage - Output (Min/Fixed):-3V
- Voltage - Output (Max):-24V
- Voltage Dropout (Max):1V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):0.7 mA
- Current - Supply (Max):5 mA
- PSRR:60dB (1kHz)
- Control Features:Enable
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-220-5
- Supplier Device Package:TO-220-5
