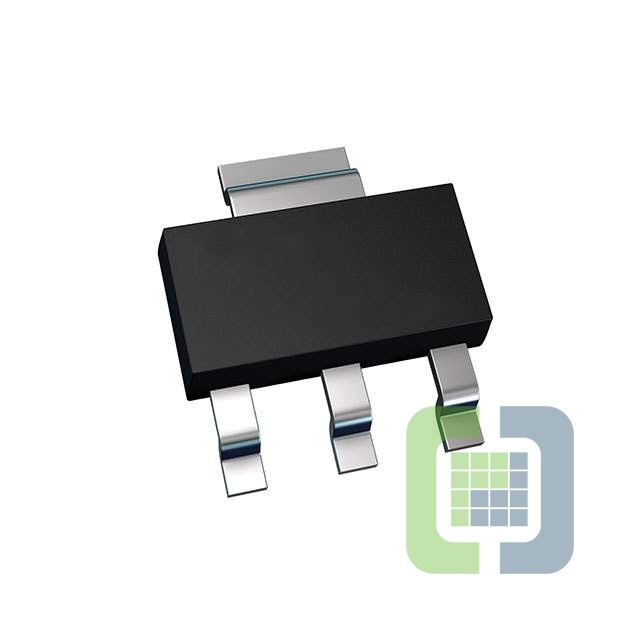

AP7361C-25E-13
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.5V 1A SOT223
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP7361C-25E-13 Datasheet
-
ECAD Model
- Share
In Stock: 6,122,684
Can ship immediately
Pricing:
- 1$0.6
- 2,500$0.2015
- 5,000$0.1885
- 12,500$0.1755
- 25,000$0.1664
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.44V @ 1A (Typ)
- Current - Output:1A
- Current - Quiescent (Iq):80 µA
- Current - Supply (Max):-
- PSRR:75dB ~ 55dB (1kHz ~ 10kHz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:TO-261-4, TO-261AA
- Supplier Device Package:SOT-223
