NCV8154MTW180280TCG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.8V/2.8V 6WDFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCV8154MTW180280TCG Datasheet
-
ECAD Model
- Share
In Stock: 111
Can ship immediately
Pricing:
- 1$0.79
- 3,000$0.2871
- 6,000$0.2673
- 15,000$0.2574
- 30,000$0.2475
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):5.25V
- Voltage - Output (Min/Fixed):1.8V, 2.8V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.43V @ 300mA, 0.29V @ 300mA
- Current - Output:300mA, 300mA
- Current - Quiescent (Iq):100 µA
- Current - Supply (Max):200 µA
- PSRR:75dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

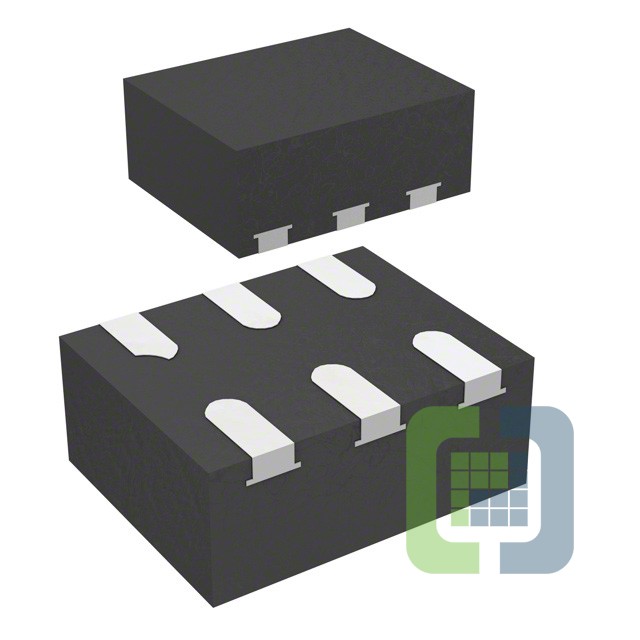

- Package / Case:6-WFDFN Exposed Pad
- Supplier Device Package:6-WDFN (1.5x1.5)
