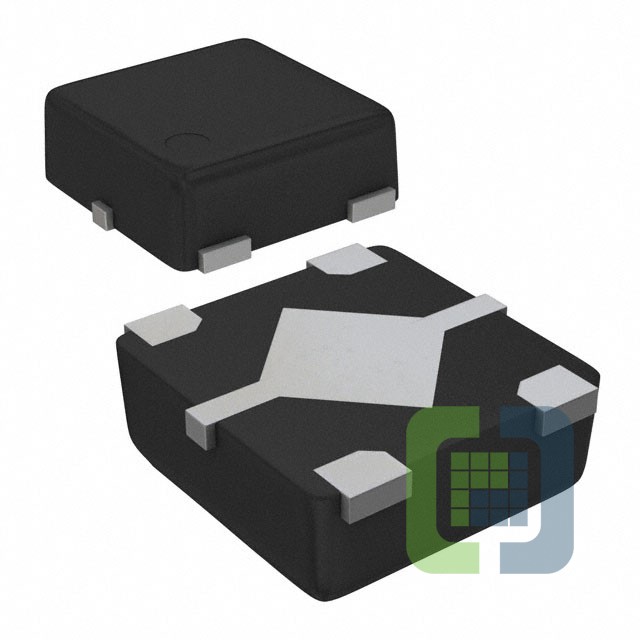

S-1313A24-A4T1U3
ABLIC U.S.A. Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.4V 200MA HSNT4-A
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet S-1313A24-A4T1U3 Datasheet
-
ECAD Model
- Share
In Stock: 165
Can ship immediately
Pricing:
- 1$0.94
- 10,000$0.3068
- 30,000$0.295
Quote It
Technical Details
- Series:S-1313
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):2.4V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.49V @ 100mA
- Current - Output:200mA
- Current - Quiescent (Iq):100 nA
- Current - Supply (Max):1.35 µA
- PSRR:-
- Control Features:Enable
- Protection Features:Overcurrent, Thermal Shutdown
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:4-SMD, Flat Lead Exposed Pad
- Supplier Device Package:HSNT-4-A
