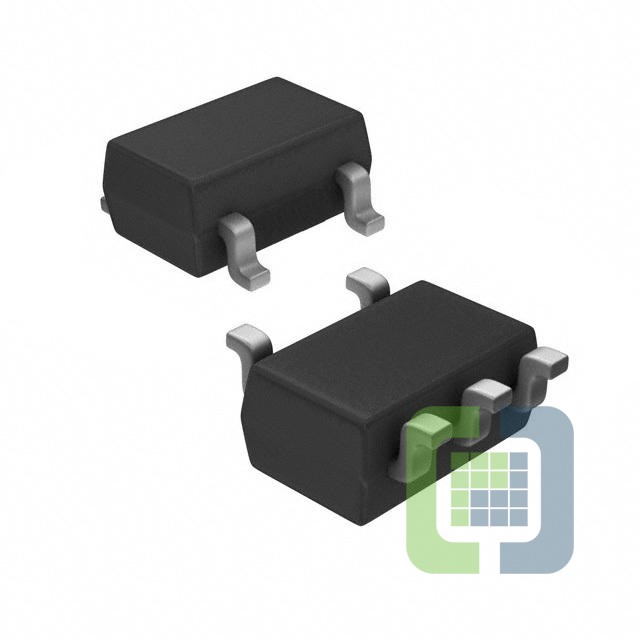

S-1335M23-M5T1U3
ABLIC U.S.A. Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.3V 150MA SOT23-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet S-1335M23-M5T1U3 Datasheet
-
ECAD Model
- Share
In Stock: 214
Can ship immediately
Pricing:
- 1$0.9
- 3,000$0.3277
- 6,000$0.3051
- 15,000$0.2938
- 30,000$0.2825
Quote It
Technical Details
- Series:S-1335
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):2.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.127V @ 100mA
- Current - Output:150mA
- Current - Quiescent (Iq):1 µA
- Current - Supply (Max):54 µA
- PSRR:80dB ~ 70dB (1kHz ~ 10KHz)
- Control Features:Enable
- Protection Features:Overcurrent, Soft-Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-23-5
