NCP5661MN12T2G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.2V 1A 6DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP5661MN12T2G Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
- 1$1.43
- 3,000$0.574
- 6,000$0.5453
- 15,000$0.5248
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):9V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.3V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):3 mA
- Current - Supply (Max):-
- PSRR:70dB ~ 65dB (120Hz ~ 1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount

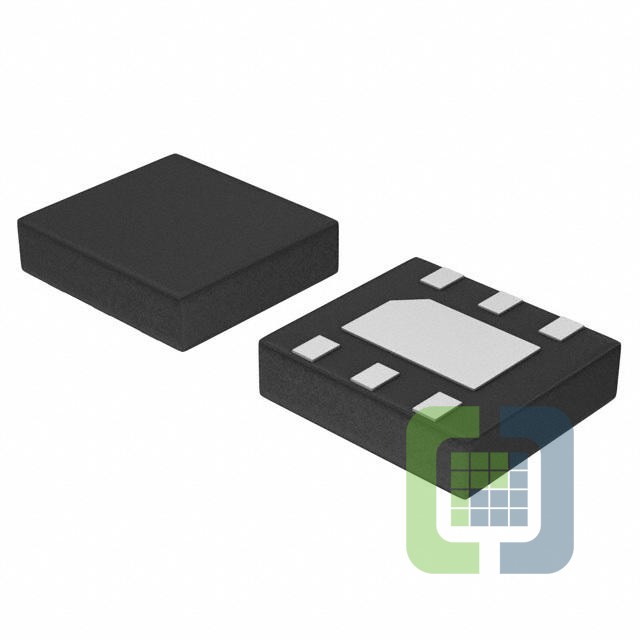

- Package / Case:6-VDFN Exposed Pad
- Supplier Device Package:6-DFN (3x3)
