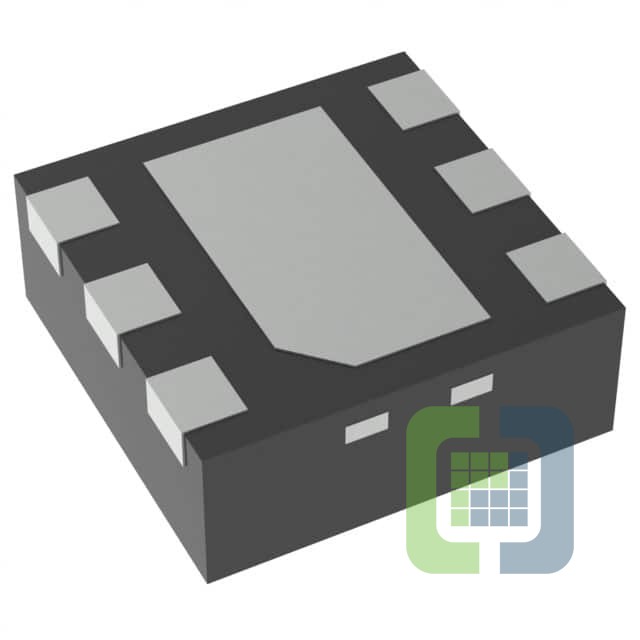

TPS780230300DRVT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 2.3V/3V 150MA 6WSON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 202
Can ship immediately
Pricing:
- 1$1.22
- 250$0.75036
- 500$0.6631
- 1,250$0.5235
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):2.3V, 3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.25V @ 250mA, 0.25V @ 250mA
- Current - Output:150mA
- Current - Quiescent (Iq):800 nA
- Current - Supply (Max):5 µA
- PSRR:40dB ~ 15dB (10Hz ~ 1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:6-WDFN Exposed Pad
- Supplier Device Package:6-WSON (2x2)
