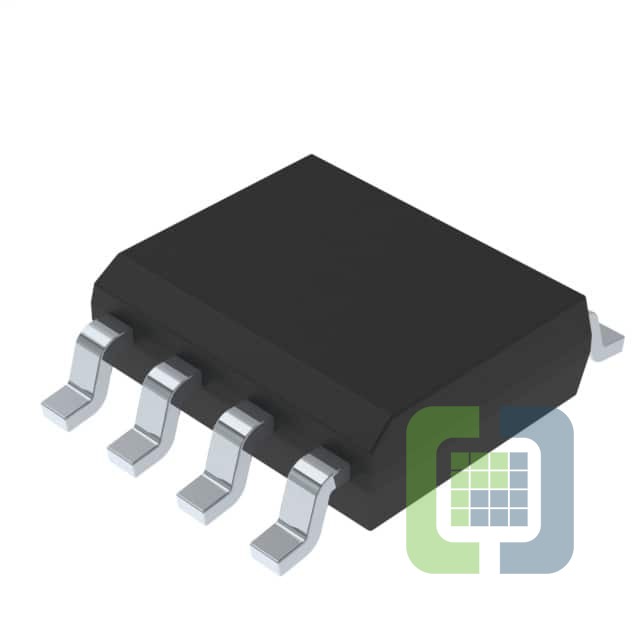

LM317LD
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 100MA 8SO
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LM317LD Datasheet
-
ECAD Model
- Share
In Stock: 123
Can ship immediately
Pricing:
- 1$0.19
- 4,000$0.19
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):37V
- Voltage Dropout (Max):-
- Current - Output:100mA
- Current - Quiescent (Iq):-
- Current - Supply (Max):-
- PSRR:80dB ~ 65dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SO
