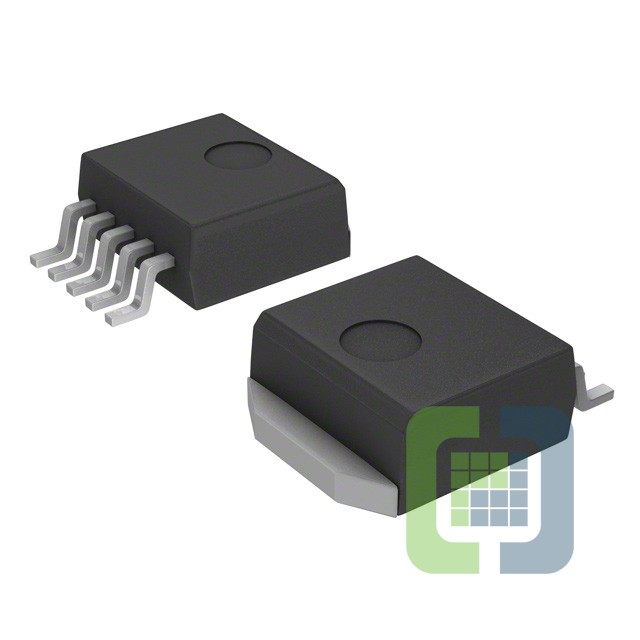

NCP565D2TR4
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 1.5A D2PAK-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP565D2TR4 Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$0.31
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):9V
- Voltage - Output (Min/Fixed):0.9V
- Voltage - Output (Max):7.7V
- Voltage Dropout (Max):1.3V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):3 mA
- Current - Supply (Max):-
- PSRR:85dB ~ 75db (120Hz ~ 1kHz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package:D2PAK-5
