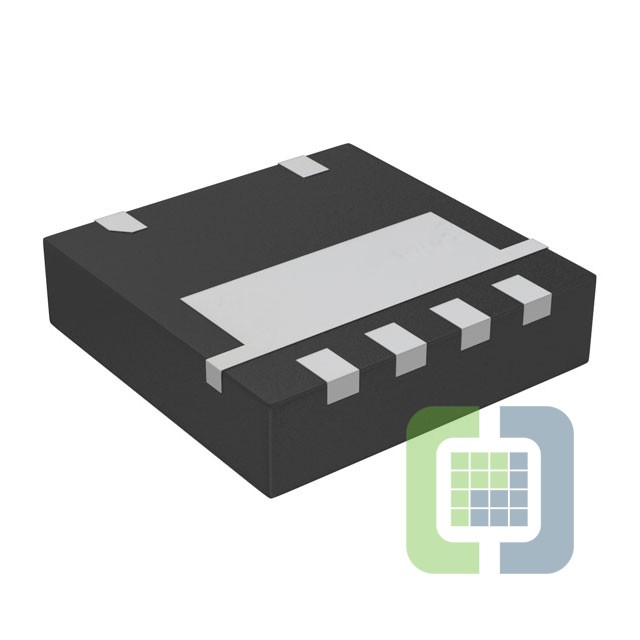

NCP781BMNADJTAG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 100MA 6DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP781BMNADJTAG Datasheet
-
ECAD Model
- Share
In Stock: 154
Can ship immediately
Pricing:
- 1$0.87
- 3,000$0.87
- 6,000$0.8265
- 15,000$0.79543
- 30,000$0.77057
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):150V
- Voltage - Output (Min/Fixed):1.23V
- Voltage - Output (Max):15V
- Voltage Dropout (Max):9.5V @ 100mA
- Current - Output:100mA
- Current - Quiescent (Iq):55 µA
- Current - Supply (Max):400 µA
- PSRR:83dB ~ 56dB (1kHz ~ 100kHz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:6-VDFN Exposed Pad
- Supplier Device Package:6-DFN (3.3x3.3)
