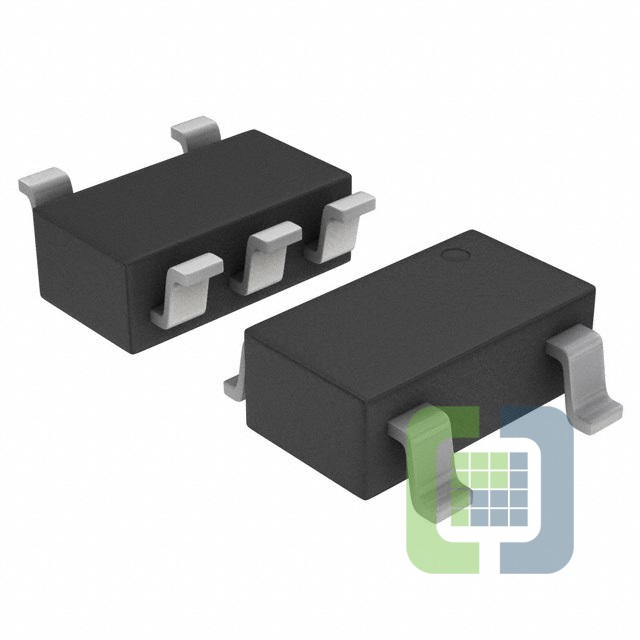

NCP4688DSN12T1G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR FIXED POS LDO REG
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP4688DSN12T1G Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$0.43
- 3,000$0.43
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.25V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.8V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):100 µA
- Current - Supply (Max):-
- PSRR:80dB ~ 65dB (1kHz ~ 100kHz)
- Control Features:Enable
- Protection Features:Over Current
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-23-5
