AP7344D-285285RH4-7
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 2.85V/2.85V X2DFN1612
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP7344D-285285RH4-7 Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$0.27
- 5,000$0.26451
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):5.25V
- Voltage - Output (Min/Fixed):2.85V, 2.85V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.3V @ 300mA, 0.3V @ 300mA
- Current - Output:300mA, 300mA
- Current - Quiescent (Iq):140 µA
- Current - Supply (Max):-
- PSRR:75dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount

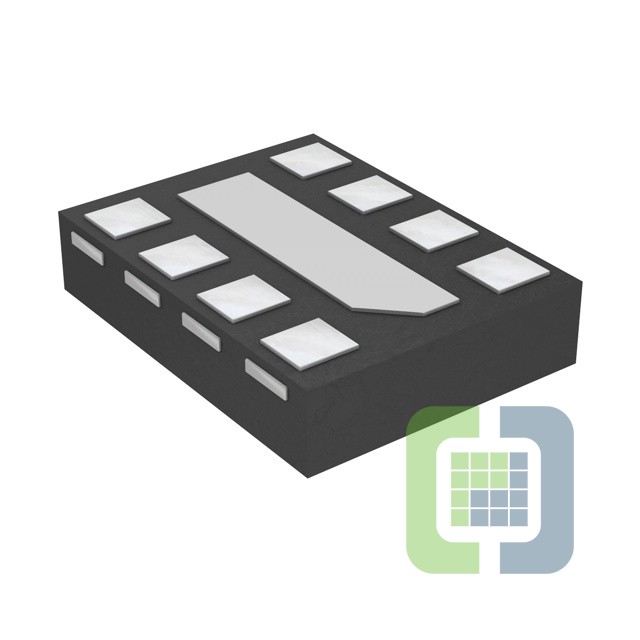

- Package / Case:8-XFDFN Exposed Pad
- Supplier Device Package:X2-DFN1612-8
