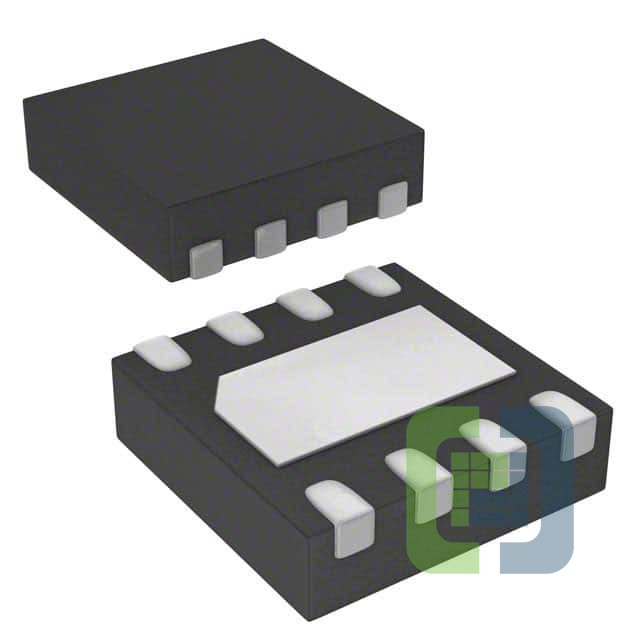

ISL80505IRAJZ-T
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 500MA 8DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ISL80505IRAJZ-T Datasheet
-
ECAD Model
- Share
In Stock: 170
Can ship immediately
Pricing:
- 1$0.5177
- 6,000$0.47473
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):5.5V
- Voltage Dropout (Max):0.09V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):4.6 mA
- Current - Supply (Max):5.7 mA
- PSRR:60dB ~ 57dB (120Hz ~ 1kHz)
- Control Features:Enable, Soft Start
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-VDFN Exposed Pad
- Supplier Device Package:8-DFN (3x3)
