MP20249DC-MC-LF-Z
MPS (Monolithic Power Systems)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.2V/2.8V 6WLCSP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MP20249DC-MC-LF-Z Datasheet
-
ECAD Model
- Share
In Stock: 135
Can ship immediately
Pricing:
- 1$0.525
- 3,000$0.52135
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Not For New Designs
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):1.2V, 2.8V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.075V @ 200mA (Typ), 0.075V @ 200mA (Typ)
- Current - Output:200mA, 200mA
- Current - Quiescent (Iq):125 µA
- Current - Supply (Max):-
- PSRR:65dB ~ 55dB (1kHz ~ 100kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount

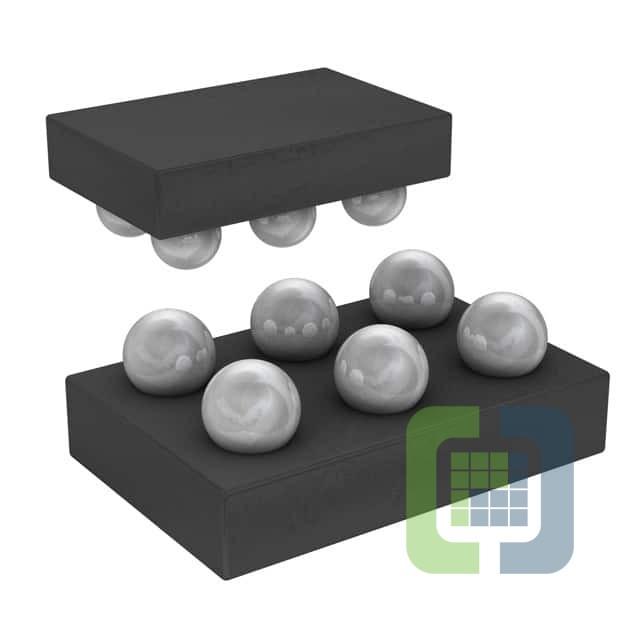

- Package / Case:6-WFBGA, WLCSP
- Supplier Device Package:6-WLCSP (1.0x1.5)
