LP3996QSDX-1833/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.8V/3.3V 10WSON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 175
Can ship immediately
Pricing:
- 1$0.49907
- 4,500$0.4956
- 9,000$0.47082
- 13,500$0.45312
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):1.8V, 3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.22V @ 150mA, 0.55V @ 150mA
- Current - Output:150mA, 300mA
- Current - Quiescent (Iq):100 µA
- Current - Supply (Max):170 µA
- PSRR:58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz)
- Control Features:Enable
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount

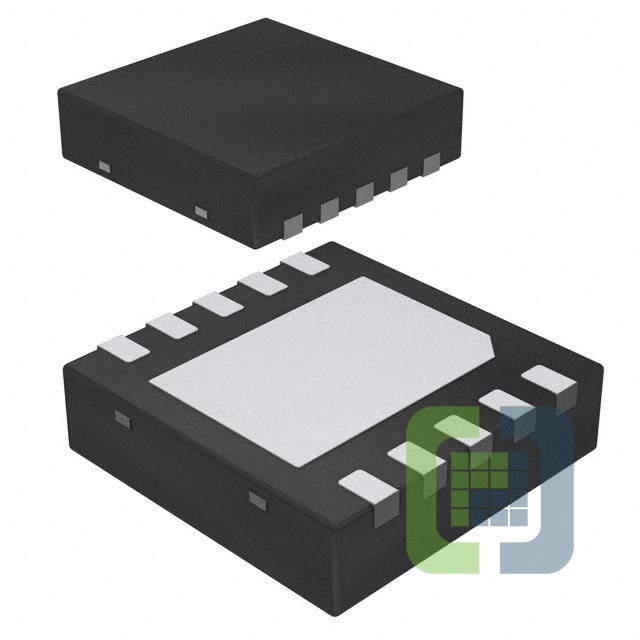

- Package / Case:10-WFDFN Exposed Pad
- Supplier Device Package:10-WSON (3x3)
