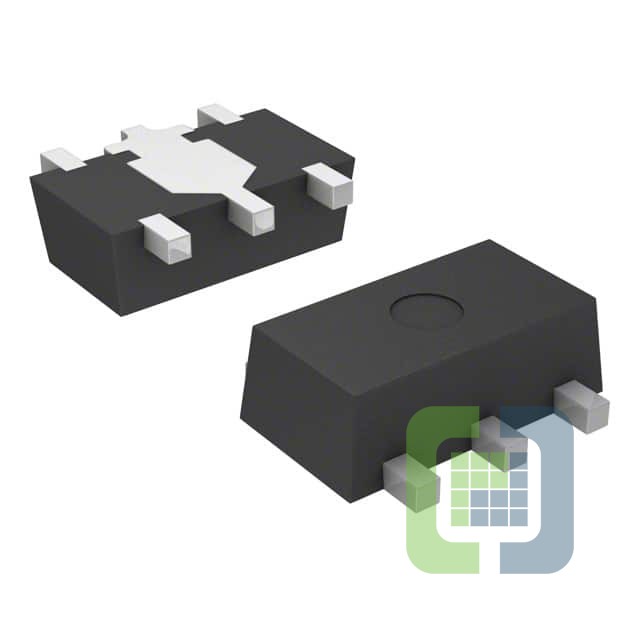

S-1170B15UC-OTATFG
ABLIC U.S.A. Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.5V 800MA SOT89-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet S-1170B15UC-OTATFG Datasheet
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
- 1$0.53424
- 1,000$0.53424
Quote It
Technical Details
- Series:S-1170
- Package:Tape & Reel (TR)
- Part Status:Not For New Designs
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6.5V
- Voltage - Output (Min/Fixed):1.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.45V @ 300mA
- Current - Output:800mA
- Current - Quiescent (Iq):1 µA
- Current - Supply (Max):160 µA
- PSRR:70dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current, Thermal Shutdown
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SOT-89-5/6
- Supplier Device Package:SOT-89-5
