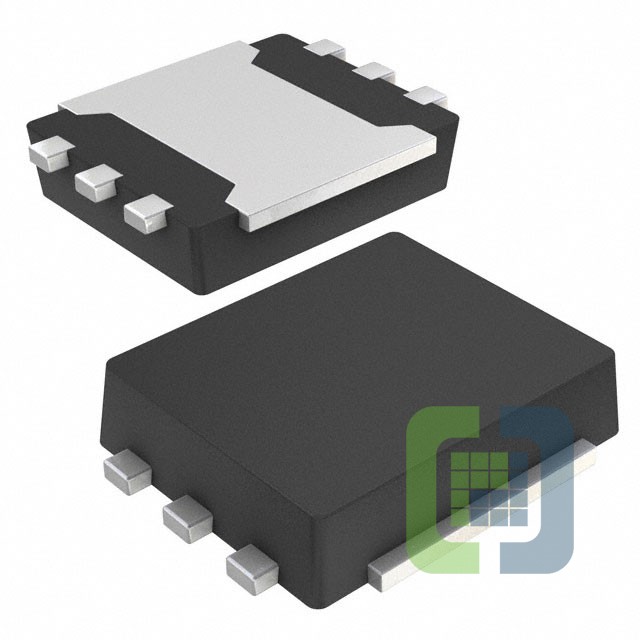

S-13A1B22-A6T1U3
ABLIC U.S.A. Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.2V 1A HSNT-6A
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet S-13A1B22-A6T1U3 Datasheet
-
ECAD Model
- Share
In Stock: 150
Can ship immediately
Pricing:
- 1$0.53572
- 5,000$0.52514
Quote It
Technical Details
- Series:S-13A1
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):2.2V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.15V @ 300mA
- Current - Output:1A
- Current - Quiescent (Iq):1 µA
- Current - Supply (Max):90 µA
- PSRR:65dB (1kHz)
- Control Features:Enable
- Protection Features:Inrush Current Limit, Over Current, Thermal Shutdown
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:6-SMD, Flat Lead Exposed Pad
- Supplier Device Package:HSNT-6A
