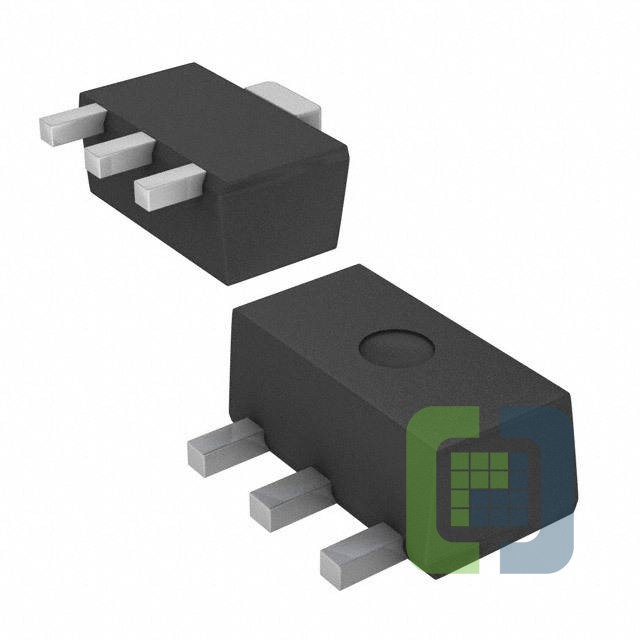

AZ1117R-1.2TRG1
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.2V 1.25A SOT89
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AZ1117R-1.2TRG1 Datasheet
-
ECAD Model
- Share
In Stock: 106
Can ship immediately
Pricing:
- 1$0.53742
- 1,000$0.53742
Quote It
Technical Details
- Series:AZ1117
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.25V @ 1A
- Current - Output:1.25A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):-
- PSRR:75dB (120Hz)
- Control Features:-
- Protection Features:Thermal Shutdown
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:TO-243AA
- Supplier Device Package:SOT-89-3
