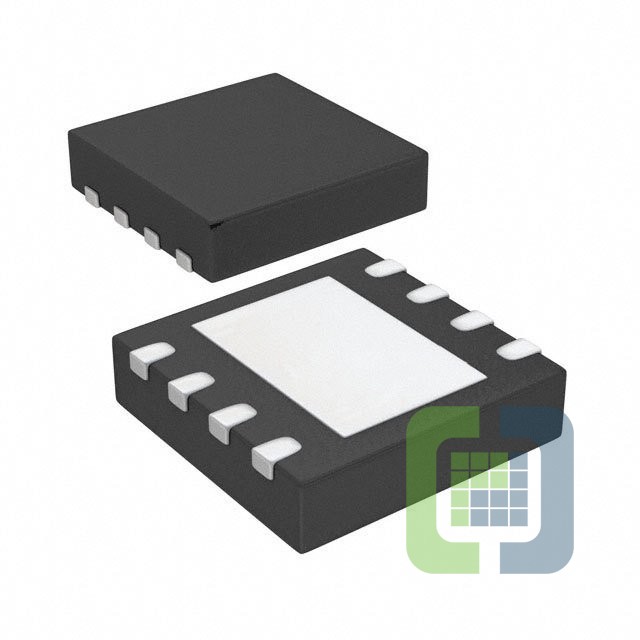

MCP1755T-5002E/MC
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 300MA 8DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MCP1755T-5002E/MC Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$0.559
- 3,300$0.53313
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):16V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):100 µA
- Current - Supply (Max):400 µA
- PSRR:80dB (1kHz)
- Control Features:Enable, Power Good
- Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-VFDFN Exposed Pad
- Supplier Device Package:8-DFN (2x3)
