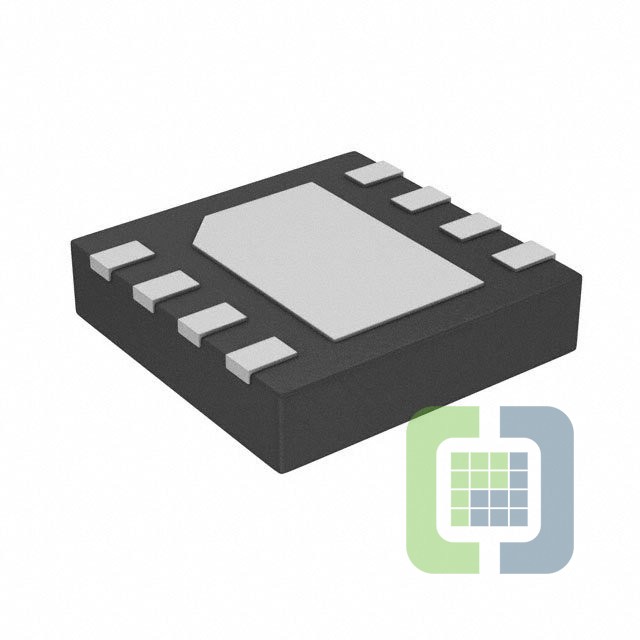

TC1301A-PGAVMF
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 1.8V/2.7V/2.63V 8DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet TC1301A-PGAVMF Datasheet
-
ECAD Model
- Share
In Stock: 148
Can ship immediately
Pricing:
- 1$0.57
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):1.8V, 2.7V, 2.63V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-, 0.25V @ 150mA
- Current - Output:300mA, 150mA
- Current - Quiescent (Iq):180 µA
- Current - Supply (Max):-
- PSRR:58dB (100Hz)
- Control Features:Enable, Reset
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-VDFN Exposed Pad
- Supplier Device Package:8-DFN-EP (3x3)
