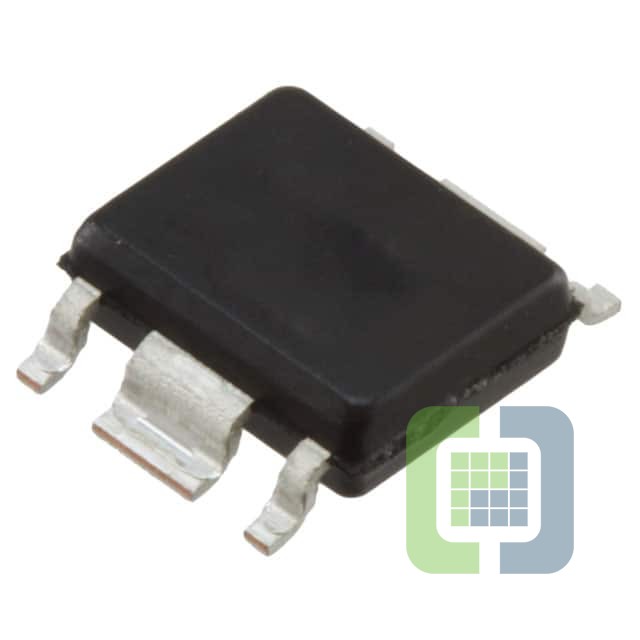

S-1142DC01-E6T1U

Technical Details

• Series:S-1142C/D
• Package:Tape & Reel (TR)
• Part Status:Not For New Designs
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):50V
• Voltage - Output (Min/Fixed):12V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.4V @ 200mA

• Current - Output:200mA
• Current - Quiescent (Iq):1 µA
• Current - Supply (Max):9 µA
• PSRR:30dB (100Hz)
• Control Features:Enable
• Protection Features:Over Current, Thermal Shutdown
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount
• Package / Case:6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
• Supplier Device Package:6-HSOP
