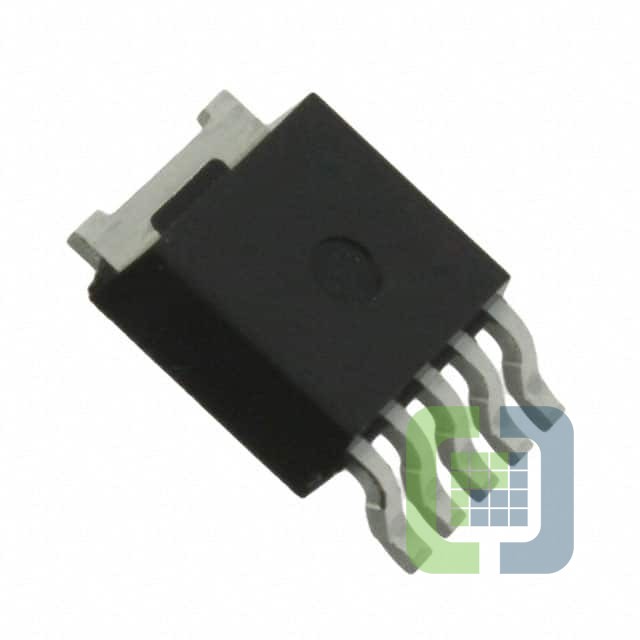

NJM2386ADL3-09-TE1
New Japan Radio (NJR)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 9V 1A TO252-5
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
- 1$0.69
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):30V
- Voltage - Output (Min/Fixed):9V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 500mA
- Current - Output:1A
- Current - Quiescent (Iq):5 mA
- Current - Supply (Max):-
- PSRR:65dB (120Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Over Voltage
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-6, DPak (5 Leads + Tab)
- Supplier Device Package:TO-252-5
