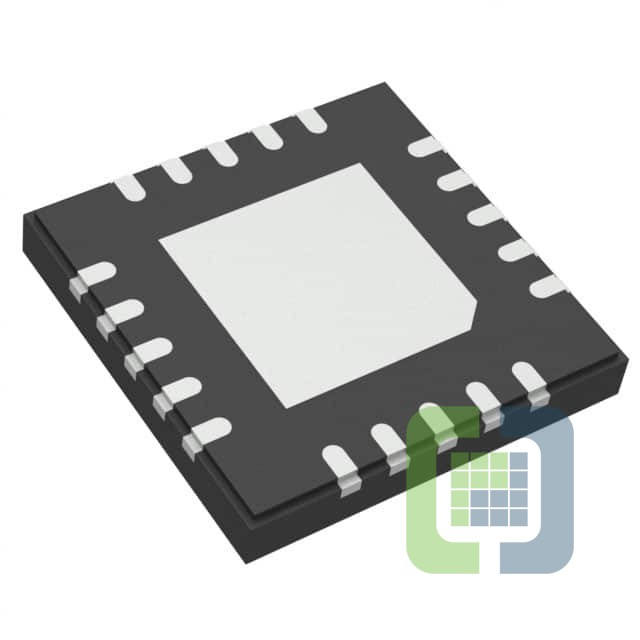

NCV59745AMW1015TAG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.015V 3A 20QFNW
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
- 1$0.72
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.015V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.4V @ 3A
- Current - Output:3A
- Current - Quiescent (Iq):2 mA
- Current - Supply (Max):-
- PSRR:75dB ~ 18dB (1kHz ~ 3MHz)
- Control Features:Enable, Power Good, Soft Start
- Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount, Wettable Flank
- Package / Case:20-VFQFN Exposed Pad
- Supplier Device Package:20-QFNW (4x4)
