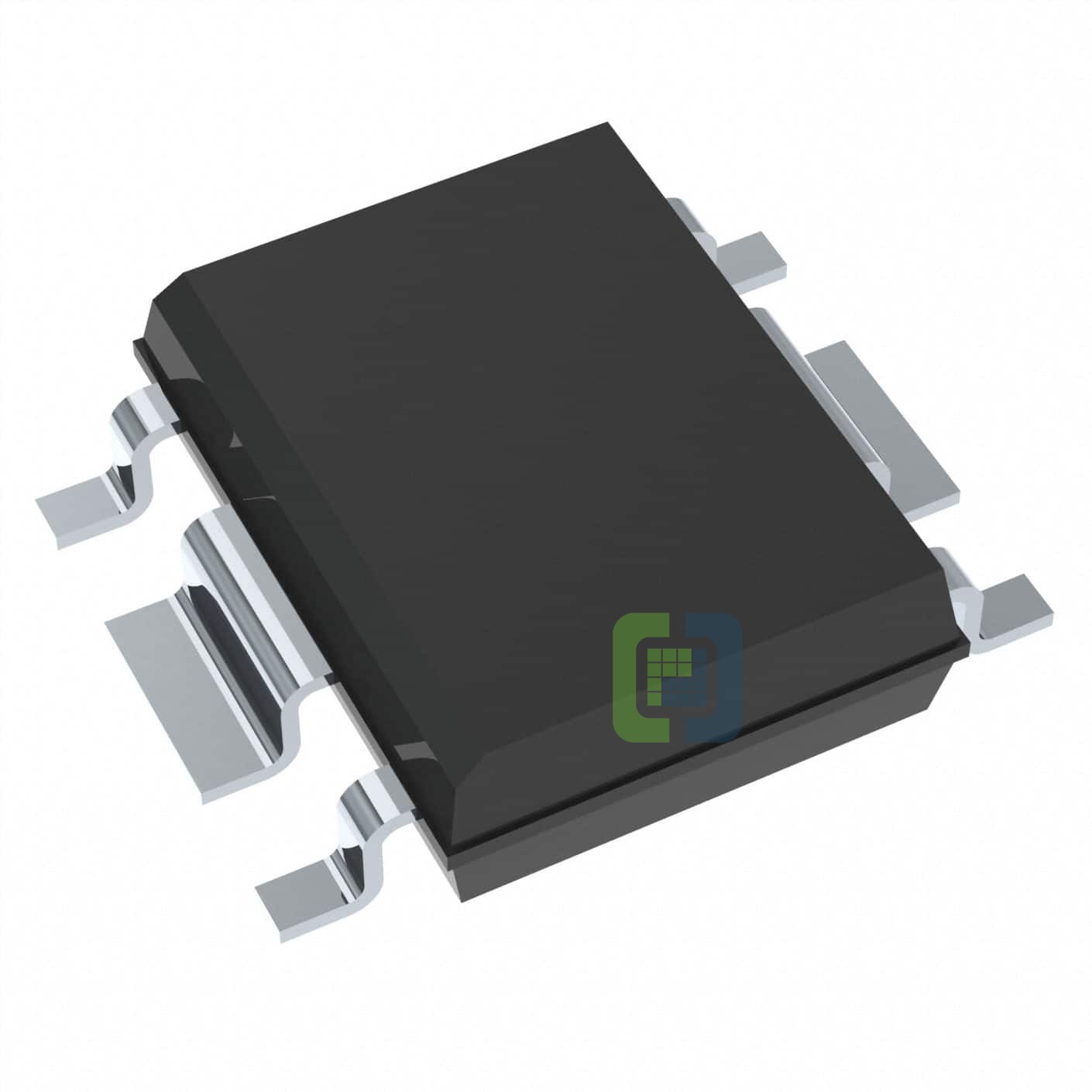

R1501S090B-E2-FE
RICOH Electronic Devices Co., LTD.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 9V 1A 6HSOP
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 138
Can ship immediately
Pricing:
- 1$0.7632
Quote It
Technical Details
- Series:R1501x
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):24V
- Voltage - Output (Min/Fixed):9V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.775V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):160 µA
- Current - Supply (Max):-
- PSRR:50dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 105°C
- Mounting Type:Surface Mount
- Package / Case:6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
- Supplier Device Package:6-HSOP-J
