MP6402DN-EF-LF-Z
MPS (Monolithic Power Systems)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 500MA
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MP6402DN-EF-LF-Z Datasheet
-
ECAD Model
- Share
In Stock: 188
Can ship immediately
Pricing:
- 1$0.855
- 2,500$0.83763
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Not For New Designs
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:2
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.9V
- Voltage - Output (Max):3.3V
- Voltage Dropout (Max):0.26V @ 500mA (Typ), 0.26V @ 500mA (Typ)
- Current - Output:500mA, 500mA
- Current - Quiescent (Iq):580 µA
- Current - Supply (Max):-
- PSRR:60db ~ 51dB (100Hz)
- Control Features:Enable, Reset
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

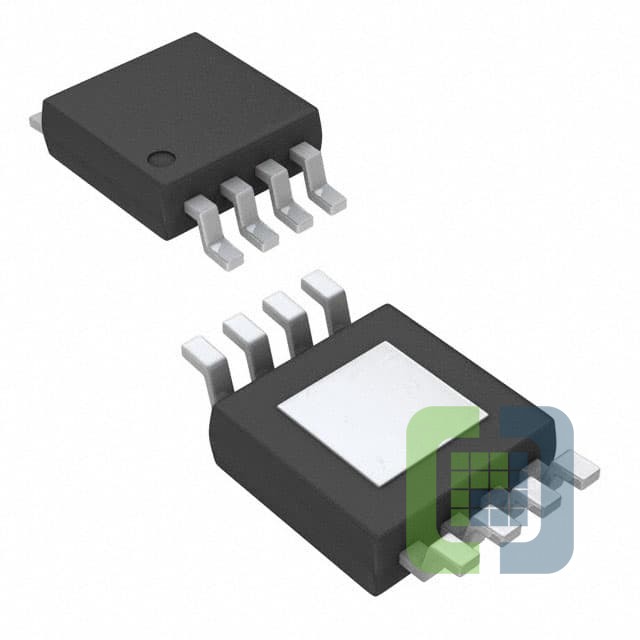

- Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package:8-SOICE
