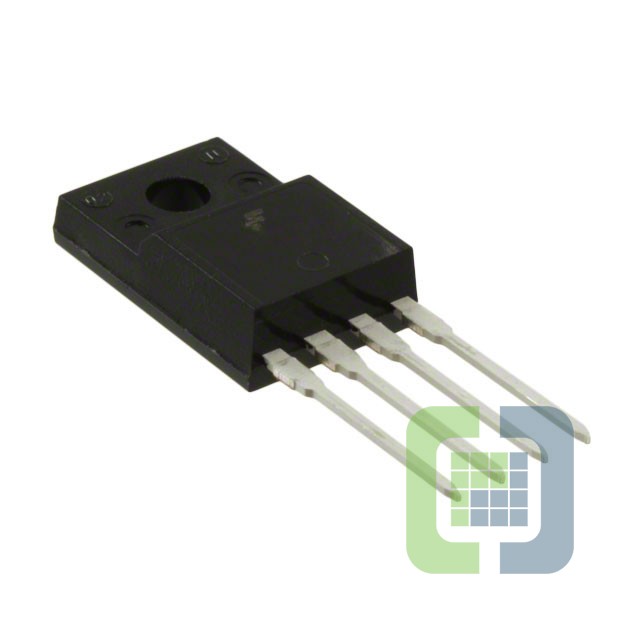

KA78R15CTU
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 15V 1A TO220F-4L
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet KA78R15CTU Datasheet
-
ECAD Model
- Share
In Stock: 182
Can ship immediately
Pricing:
- 1$0.99
- 10$0.88759
- 100$0.69172
- 500$0.57143
- 1,000$0.45113
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):35V
- Voltage - Output (Min/Fixed):15V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):-
- PSRR:-
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Over Voltage, Short Circuit
- Operating Temperature:-20°C ~ 80°C
- Mounting Type:Through Hole
- Package / Case:TO-220-4 Full Pack
- Supplier Device Package:TO-220F-4L
