MP2013AGJE-C672-P
MPS (Monolithic Power Systems)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 150MA TSOT23
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MP2013AGJE-C672-P Datasheet
-
ECAD Model
- Share
In Stock: 191
Can ship immediately
Pricing:
- 1$1.0017
- 500$0.97279
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):1.215V
- Voltage - Output (Max):15V
- Voltage Dropout (Max):0.85V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):9 µA
- Current - Supply (Max):22 µA
- PSRR:58dB ~ 41dB (100Hz ~ 1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

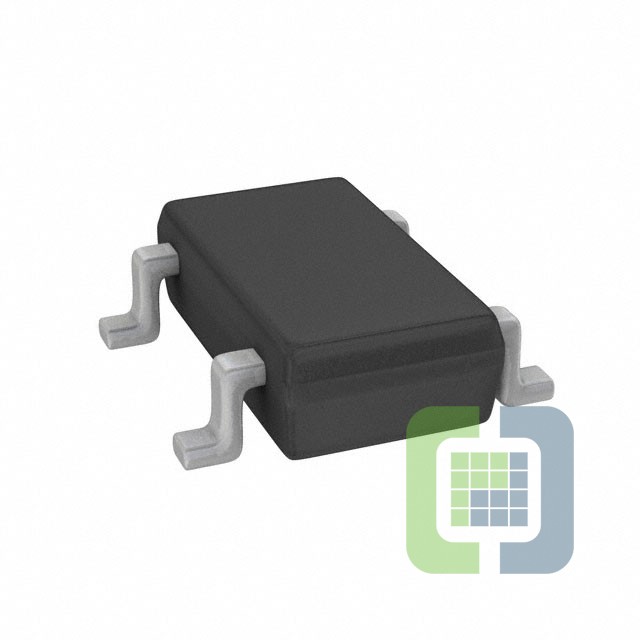

- Package / Case:SOT-23-4 Thin, TSOT-23-4
- Supplier Device Package:TSOT-23-4
