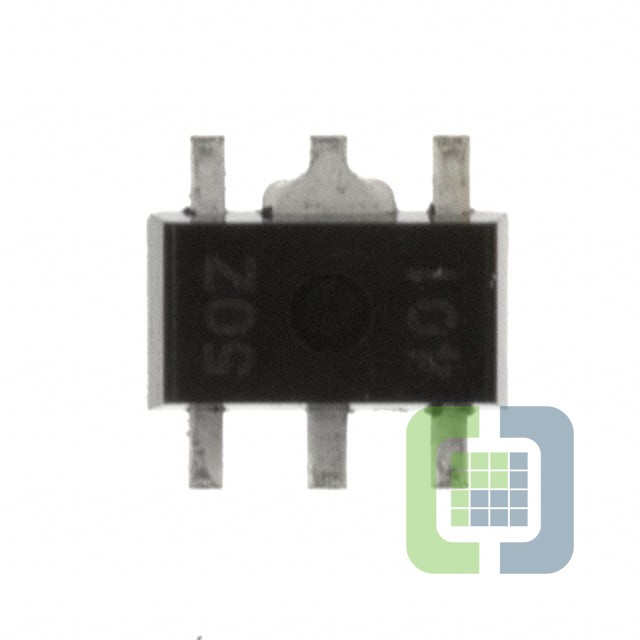

NJM2800U3342-TE1
New Japan Radio (NJR)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 150MA SOT89-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NJM2800U3342-TE1 Datasheet
-
ECAD Model
- Share
In Stock: 158
Can ship immediately
Pricing:
- 1$1.09214
- 2,000$1.06995
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):14V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.18V @ 60mA
- Current - Output:150mA
- Current - Quiescent (Iq):350 µA
- Current - Supply (Max):-
- PSRR:60dB (1kHz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:SOT-89-5/6
- Supplier Device Package:SOT-89-5
