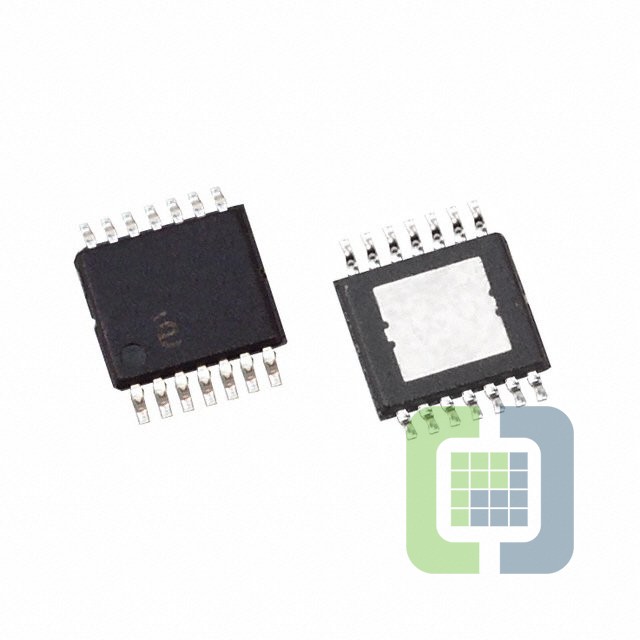

ISL80138IVEAJZ-T
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 14HTSSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ISL80138IVEAJZ-T Datasheet
-
ECAD Model
- Share
In Stock: 155
Can ship immediately
Pricing:
- 1$1.1189
- 2,500$1.04708
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):12V
- Voltage Dropout (Max):0.507V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):24 µA
- Current - Supply (Max):125 µA
- PSRR:66dB (100Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Soft Start
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:14-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package:14-HTSSOP
