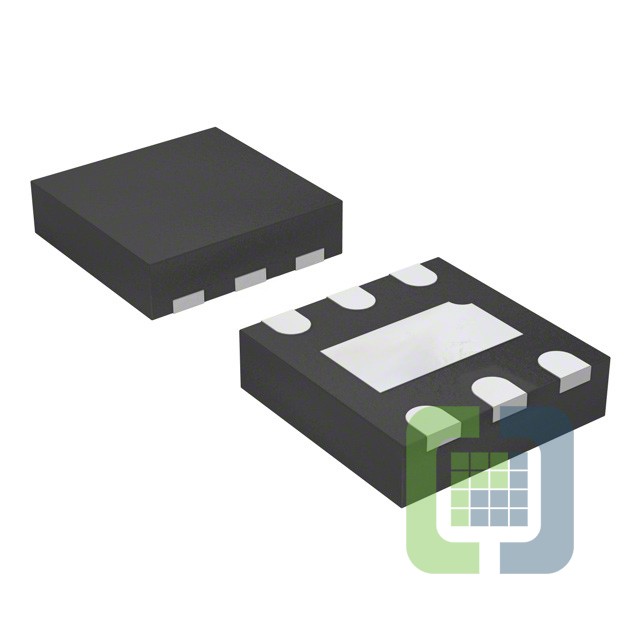

ADM7160ACPZN1.8-R2
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.8V 200MA 6LFCSP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADM7160ACPZN1.8-R2 Datasheet
-
ECAD Model
- Share
In Stock: 155
Can ship immediately
Pricing:
- 1$1.2508
- 250$1.2508
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.8V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.23V @ 200mA
- Current - Output:200mA
- Current - Quiescent (Iq):20 µA
- Current - Supply (Max):350 µA
- PSRR:54dB ~ 43dB (100kHz ~ 1MHz)
- Control Features:Enable
- Protection Features:Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:6-UDFN Exposed Pad, CSP
- Supplier Device Package:6-LFCSP-UD (2x2)
