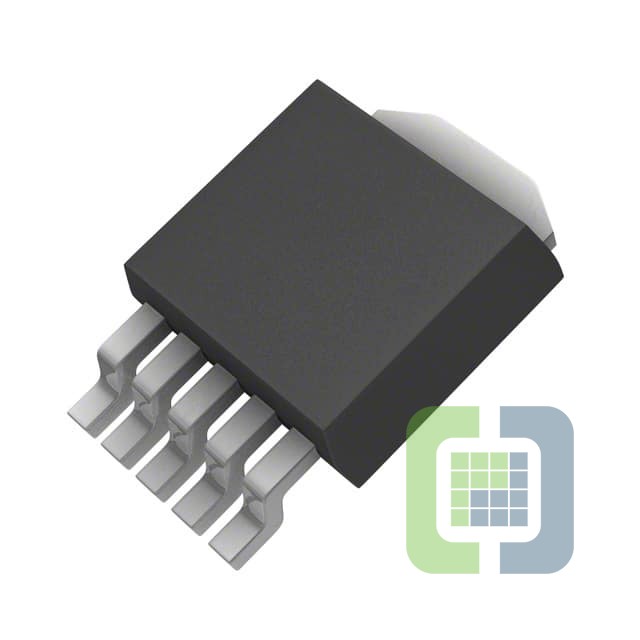

MP2014GZD-36-P
MPS (Monolithic Power Systems)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.6V 500MA TO252-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MP2014GZD-36-P Datasheet
-
ECAD Model
- Share
In Stock: 130
Can ship immediately
Pricing:
- 1$1.42836
- 500$1.38714
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):3.6V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.3V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):17 µA
- Current - Supply (Max):150 µA
- PSRR:57dB ~ 51dB (100Hz ~ 100kHz)
- Control Features:Current Limit, Power Good
- Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:TO-252-6, DPak (5 Leads + Tab)
- Supplier Device Package:TO-252-5
