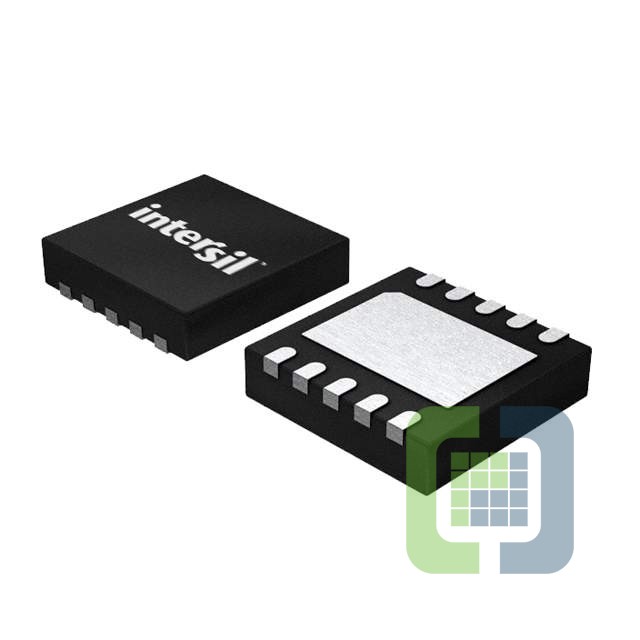

ISL80103IRAJZ-T
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 3A 10DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ISL80103IRAJZ-T Datasheet
-
ECAD Model
- Share
In Stock: 158
Can ship immediately
Pricing:
- 1$1.5698
- 6,000$1.43125
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):5V
- Voltage Dropout (Max):0.244V @ 3A
- Current - Output:3A
- Current - Quiescent (Iq):9 mA
- Current - Supply (Max):12 mA
- PSRR:62dB ~ 55dB (120Hz ~ 1kHz)
- Control Features:Enable, Power Good, Soft Start
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:10-VFDFN Exposed Pad
- Supplier Device Package:10-DFN (3x3)
