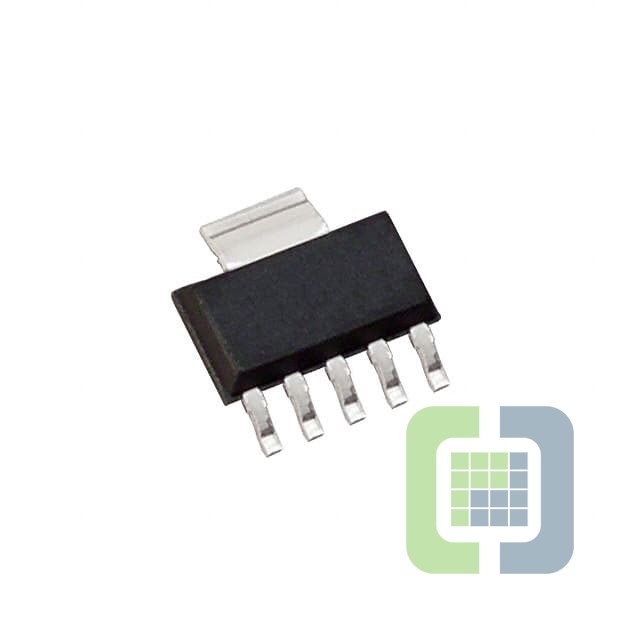

TPS72501DCQRG4
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 1A SOT223-6
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 121
Can ship immediately
Pricing:
- 1$2.17267
- 2,500$2.12975
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):1.22V
- Voltage - Output (Max):5.5V
- Voltage Dropout (Max):0.28V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):225 µA
- Current - Supply (Max):325 µA
- PSRR:60dB (1kHz)
- Control Features:Enable, Reset
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:SOT-223-6
- Supplier Device Package:SOT-223-6
