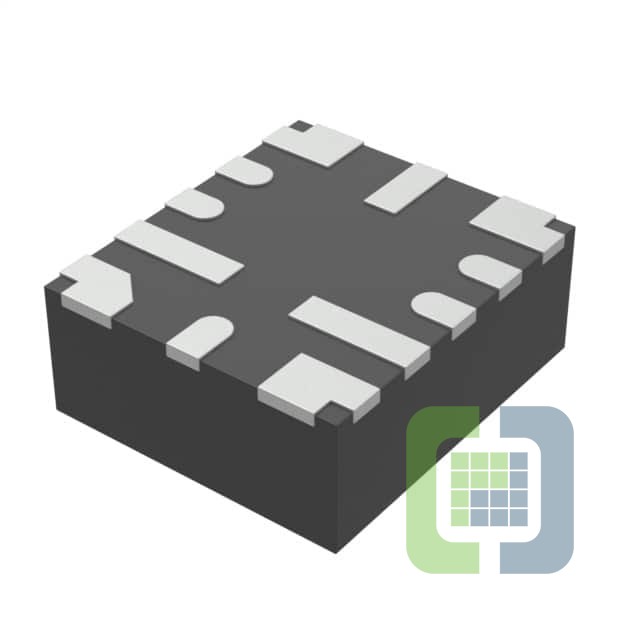

TPS7A5401RPSR
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 4A 12VQFN
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 141
Can ship immediately
Pricing:
- 1$2.49832
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):6.5V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):5.15V
- Voltage Dropout (Max):0.565V @ 4A
- Current - Output:4A
- Current - Quiescent (Iq):4 mA
- Current - Supply (Max):6 mA
- PSRR:42dB ~ 39dB (10kHz ~ 500kHz)
- Control Features:Enable, Power Good, Soft Start
- Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:12-VFQFN
- Supplier Device Package:12-VQFN-HR (2.2x2.5)
