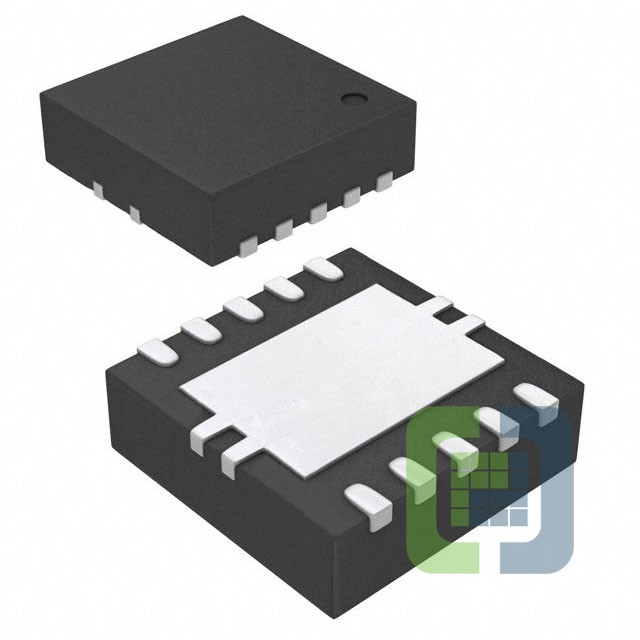

TPS7A3901DSCR
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS/NEG ADJ 10WSON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$2.17088
- 3,000$2.17088
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive and Negative
- Output Type:Adjustable
- Number of Regulators:2
- Voltage - Input (Max):±33V
- Voltage - Output (Min/Fixed):1.2V, 0V
- Voltage - Output (Max):30V, -30V
- Voltage Dropout (Max):0.5V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):150 µA
- Current - Supply (Max):904 µA
- PSRR:69dB (120Hz)
- Control Features:Current Limit, Enable, Soft Start
- Protection Features:Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:10-WFDFN Exposed Pad
- Supplier Device Package:10-WSON (3x3)
