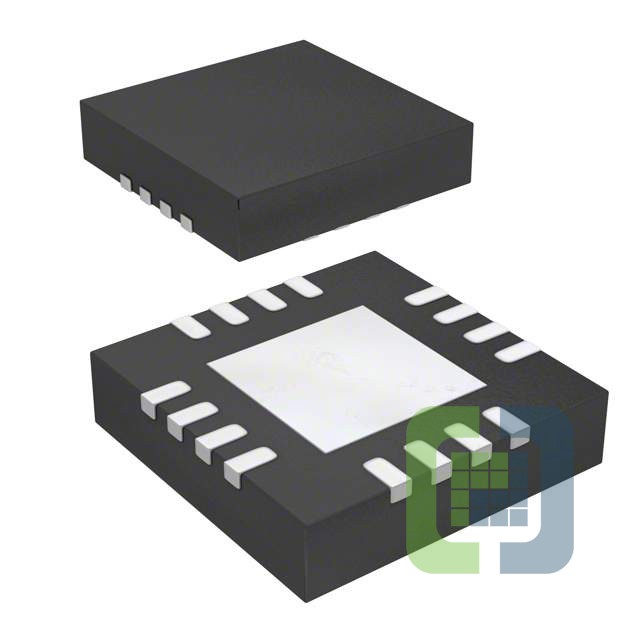

MAX5086BATE+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 250MA 16TQFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MAX5086BATE+ Datasheet
-
ECAD Model
- Share
In Stock: 105
Can ship immediately
Pricing:
- 1$2.44294
- 240$2.44294
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable (Fixed)
- Number of Regulators:1
- Voltage - Input (Max):45V
- Voltage - Output (Min/Fixed):2.5V (5V)
- Voltage - Output (Max):11V
- Voltage Dropout (Max):2.2V @ 250mA
- Current - Output:250mA
- Current - Quiescent (Iq):115 µA
- Current - Supply (Max):-
- PSRR:54dB (100Hz)
- Control Features:Enable, Reset
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:16-WQFN Exposed Pad
- Supplier Device Package:16-TQFN (5x5)
