ADP7185ACPZN-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN NEG ADJ 500MA 8LFCSP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP7185ACPZN-R7 Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
- 1$2.475
- 3,000$2.475
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Negative
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):-5.5V
- Voltage - Output (Min/Fixed):-0.5V
- Voltage - Output (Max):-5V
- Voltage Dropout (Max):0.36V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):900 µA
- Current - Supply (Max):7 mA
- PSRR:80dB ~ 40dB (1kHz ~ 1MHz)
- Control Features:Enable, Power On Reset
- Protection Features:Over Current
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

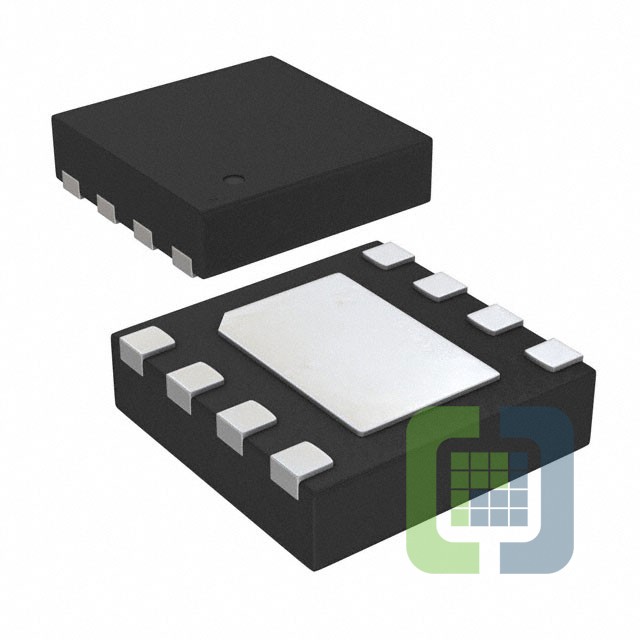

- Package / Case:8-UFDFN Exposed Pad, CSP
- Supplier Device Package:8-LFCSP (2x2)
