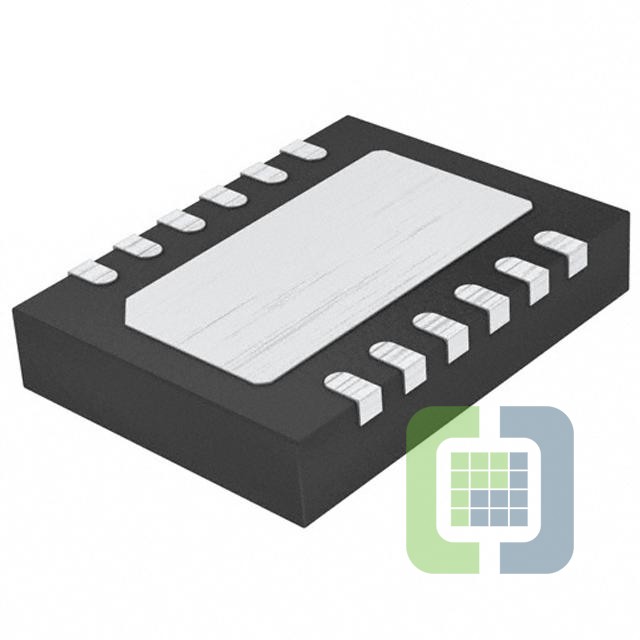

LT3066EDE-5#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 500MA 12DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LT3066EDE-5#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 178
Can ship immediately
Pricing:
- 1$2.76321
- 2,500$2.70088
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):45V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.51V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):125 µA
- Current - Supply (Max):25 mA
- PSRR:70dB (120Hz)
- Control Features:Current Limit, Enable, Power Good, Soft Start
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:12-VFDFN Exposed Pad
- Supplier Device Package:12-DFN (4x3)
