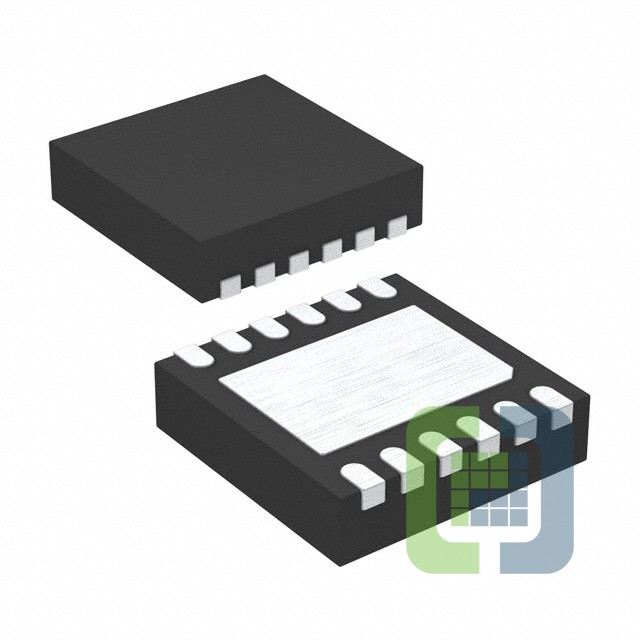

LT3089EDF#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 800MA 12DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LT3089EDF#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 162
Can ship immediately
Pricing:
- 1$2.93238
- 2,500$2.86624
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):36V
- Voltage - Output (Min/Fixed):0V
- Voltage - Output (Max):34.5V
- Voltage Dropout (Max):1.65V @ 800mA
- Current - Output:800mA
- Current - Quiescent (Iq):50.5 µA
- Current - Supply (Max):3 mA
- PSRR:90dB ~ 20dB (120Hz ~ 1MHz)
- Control Features:Current Limit
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:12-WFDFN Exposed Pad
- Supplier Device Package:12-DFN (4x4)
