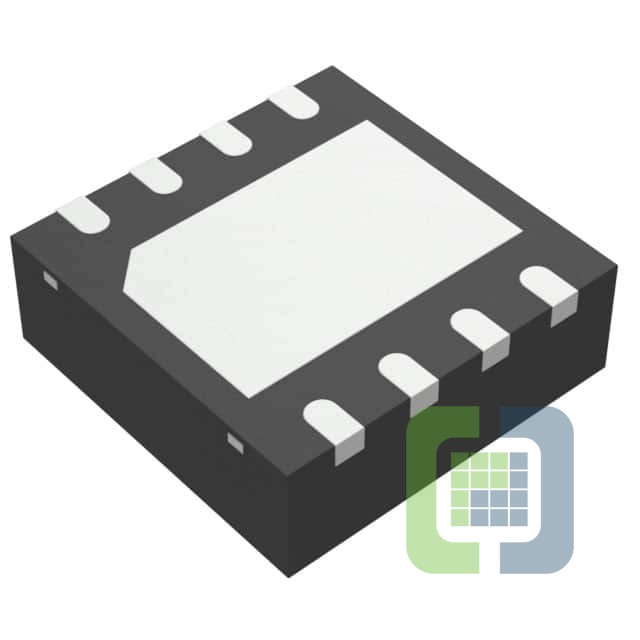

TPS78601DRBT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1.5A 8SON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 100
Can ship immediately
Pricing:
- 1$3.02388
- 250$3.02388
- 500$2.7133
- 1,250$2.28833
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):5.5V
- Voltage Dropout (Max):0.47V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):385 µA
- Current - Supply (Max):-
- PSRR:59dB ~ 32dB (100Hz ~ 100kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-VDFN Exposed Pad
- Supplier Device Package:8-SON (3x3)
