MPQ1530DQ-AEC1-LF-P
MPS (Monolithic Power Systems)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS/NEG ADJ 16QFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MPQ1530DQ-AEC1-LF-P Datasheet
-
ECAD Model
- Share
In Stock: 172
Can ship immediately
Pricing:
- 1$3.14968
- 500$3.08282
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive and Negative
- Output Type:Adjustable
- Number of Regulators:3
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):2.7V, 0V, 0V
- Voltage - Output (Max):22V, -20V, 38V
- Voltage Dropout (Max):1V @ 20mA
- Current - Output:2.8A, 20mA, 20mA
- Current - Quiescent (Iq):1.6 mA
- Current - Supply (Max):-
- PSRR:-
- Control Features:Enable, Power Good, Soft Start
- Protection Features:Over Current, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

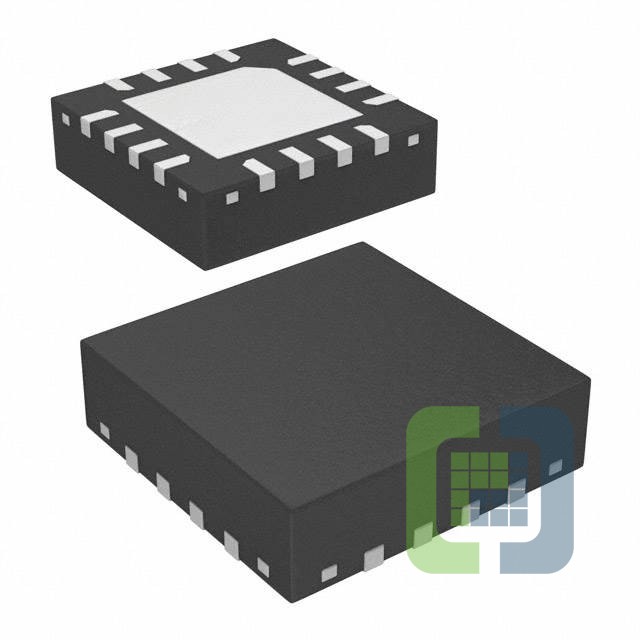

- Package / Case:16-VFQFN Exposed Pad
- Supplier Device Package:16-QFN (3x3)
