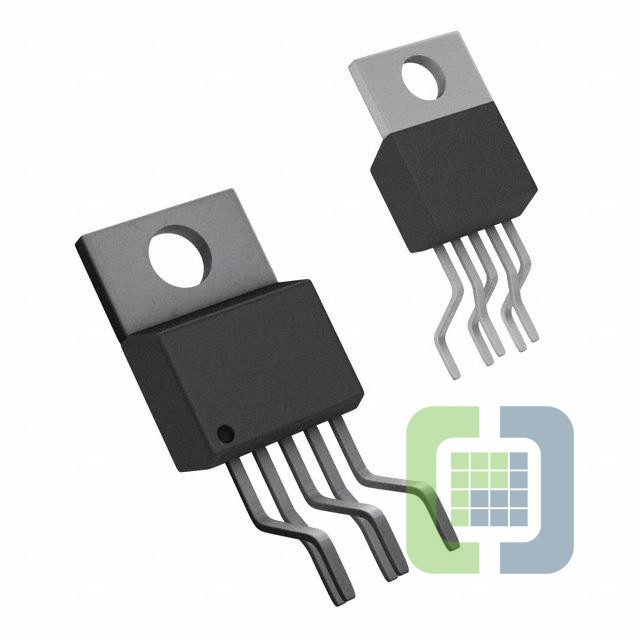

LP3856ET-3.3/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 3A TO220-5
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
- 1$3.92733
- 10$3.52369
- 45$3.3313
- 135$2.88708
- 540$2.45769
- 1,035$2.07275
- 2,520$1.96912
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):7V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.6V @ 3A
- Current - Output:3A
- Current - Quiescent (Iq):4 mA
- Current - Supply (Max):10 mA
- PSRR:73dB ~ 57dB (120Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-220-5 Formed Leads
- Supplier Device Package:TO-220-5
