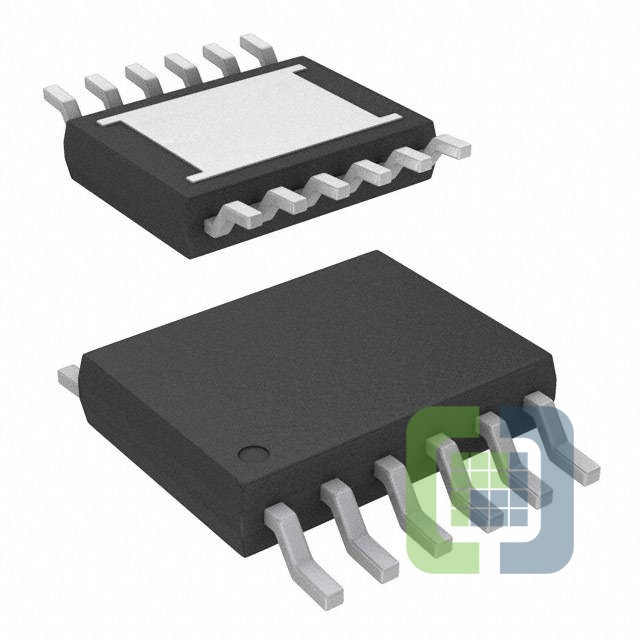

LT3094EMSE#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN NEG ADJ 500MA 12MSOP
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 135
Can ship immediately
Pricing:
- 1$4.08
- 2,500$3.98797
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Negative
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):-2.3V
- Voltage - Output (Min/Fixed):-19.5V
- Voltage - Output (Max):0V
- Voltage Dropout (Max):0.41V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):2.35 mA
- Current - Supply (Max):23 mA
- PSRR:108dB ~ 28dB (120Hz ~ 10MHz)
- Control Features:Enable, Power Good, Soft Start
- Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:12-TSSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:12-MSOP-EP
