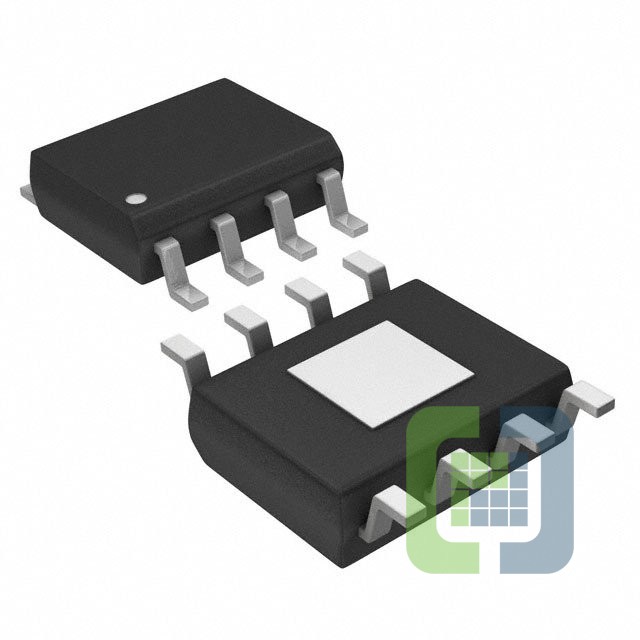

ADP7159ARDZ-03-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 2A 8SOIC
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP7159ARDZ-03-R7 Datasheet
-
ECAD Model
- Share
In Stock: 115
Can ship immediately
Pricing:
- 1$4.77
- 1,000$4.77
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):2.9V
- Voltage Dropout (Max):0.28V @ 2A
- Current - Output:2A
- Current - Quiescent (Iq):8 mA
- Current - Supply (Max):14 mA
- PSRR:65dB ~ 45dB (1kHz ~ 1MHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package:8-SOIC-EP
