LT3015EDD-12#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR -12V 1.5A 8DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LT3015EDD-12#PBF Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$4.79248
- 242$3.94672
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Negative
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):-30V
- Voltage - Output (Min/Fixed):-12V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):2.4 mA
- Current - Supply (Max):70 mA
- PSRR:53dB (120Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount

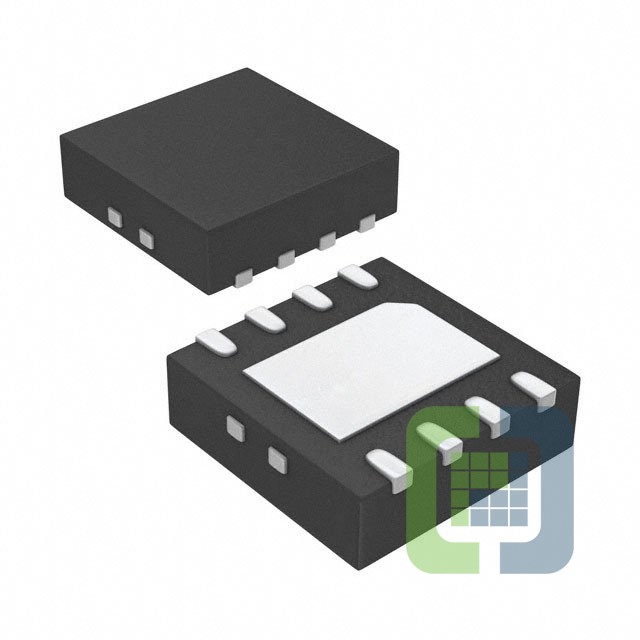

- Package / Case:8-WFDFN Exposed Pad
- Supplier Device Package:8-DFN (3x3)
