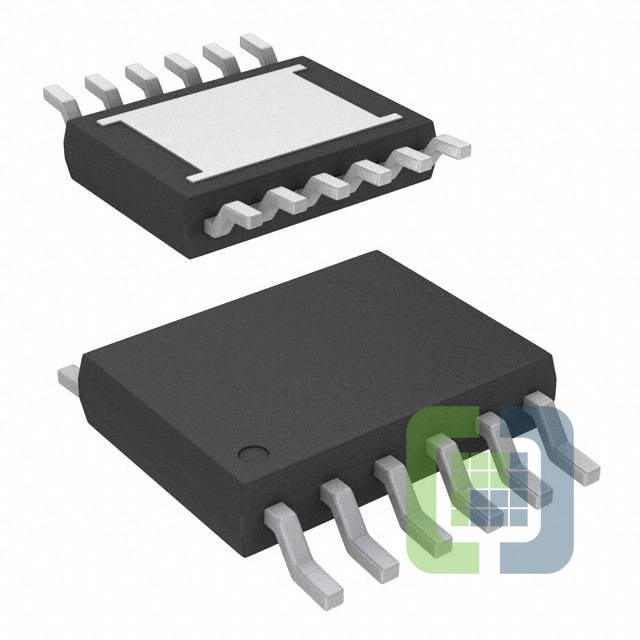

LT3045HMSE#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 0V 500MA 12MSOP
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 104
Can ship immediately
Pricing:
- 1$5.22
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Programmable
- Number of Regulators:1
- Voltage - Input (Max):20V
- Voltage - Output (Min/Fixed):0V
- Voltage - Output (Max):15V
- Voltage Dropout (Max):0.45V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):2.2 mA
- Current - Supply (Max):25 mA
- PSRR:117dB ~ 53dB (120Hz ~ 10MHz)
- Control Features:Enable, Power Good
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:12-TSSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:12-MSOP-EP
