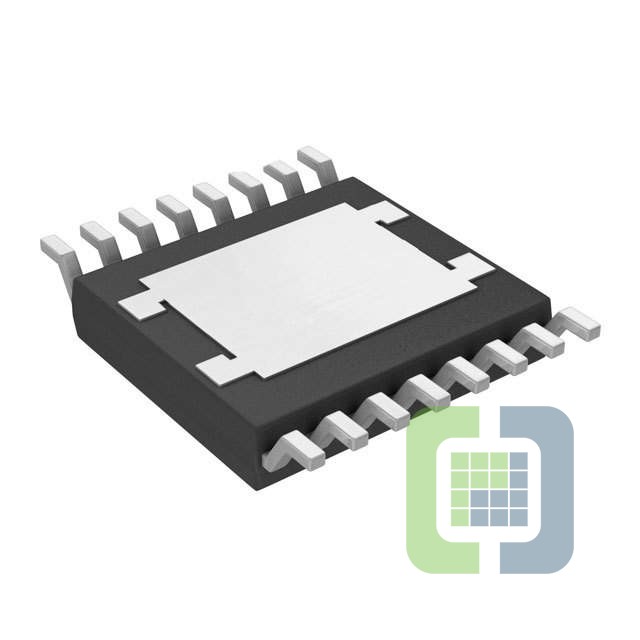

LT3086HFE#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 2.1A 16TSSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LT3086HFE#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 154
Can ship immediately
Pricing:
- 1$5.355
- 2,500$5.23421
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):0.4V
- Voltage - Output (Max):32V
- Voltage Dropout (Max):0.54V @ 2.1A
- Current - Output:2.1A
- Current - Quiescent (Iq):2.4 mA
- Current - Supply (Max):88 mA
- PSRR:80dB (120Hz)
- Control Features:Current Limit, Enable, Power Good, Tracking
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package:16-TSSOP-EP
