ADP1763ACPZ-1.1-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.1V 3A 16LFCSP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP1763ACPZ-1.1-R7 Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
- 1$5.83848
- 1,500$5.83848
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):1.98V
- Voltage - Output (Min/Fixed):1.1V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.145V @ 3A
- Current - Output:3A
- Current - Quiescent (Iq):8 mA
- Current - Supply (Max):16 mA
- PSRR:62dB ~ 33dB (10kHz ~ 1MHz)
- Control Features:Enable, Power Good, Soft Start
- Protection Features:Current Limit, Thermal Overload
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

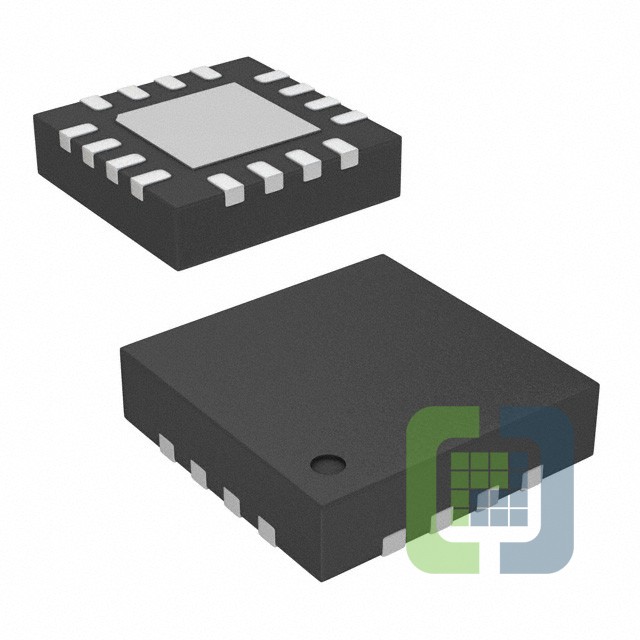

- Package / Case:16-WFQFN Exposed Pad
- Supplier Device Package:16-LFCSP-WQ (3x3)
