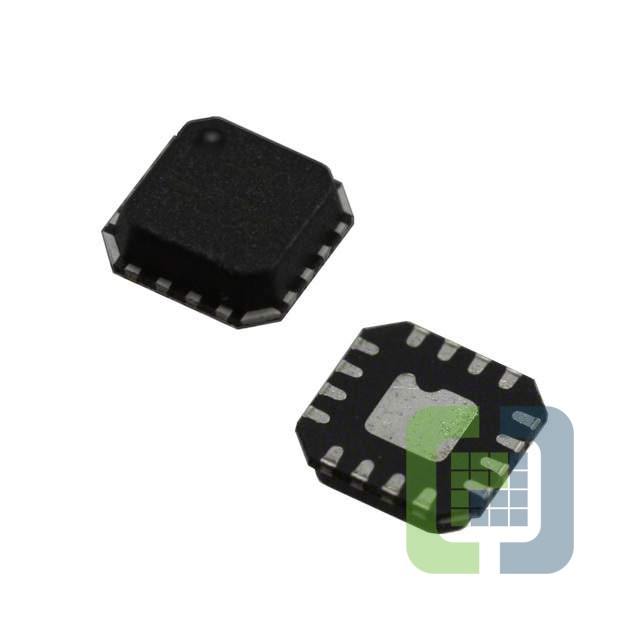

ADP1764ACPZ-1.0-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1V 4A 16LFCSP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP1764ACPZ-1.0-R7 Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
- 1$7.95
- 1,500$7.95
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):1.98V
- Voltage - Output (Min/Fixed):1V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.075V @ 4A
- Current - Output:4A
- Current - Quiescent (Iq):17 mA
- Current - Supply (Max):23 mA
- PSRR:69dB ~ 35dB (10kHz ~ 1MHz)
- Control Features:Enable, Power Good, Soft Start
- Protection Features:Current Limit, Thermal Overload
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-WFQFN Exposed Pad, CSP
- Supplier Device Package:16-LFCSP (3x3)
