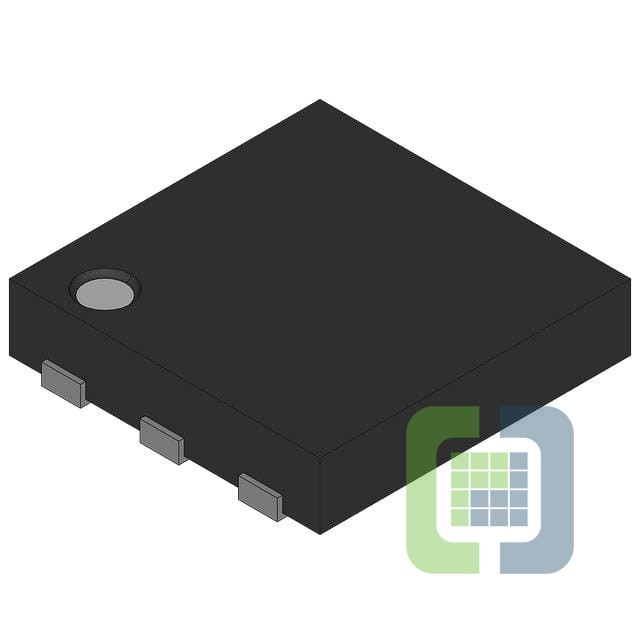

LP38690SD-3.3/NOPB
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLP38690 1A LOW DROPOUT CMOS LINE
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 139
Can ship immediately
Pricing:
- 1$0.69
- 1,000$0.2959
- 2,000$0.27617
- 5,000$0.26236
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):10V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):55 µA
- Current - Supply (Max):100 µA
- PSRR:55dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:6-WDFN Exposed Pad
- Supplier Device Package:6-WSON (3x3)
